A mirror stainless steel sculpture is a sculpture made of stainless steel sheet or plate that has been polished until its surface reflects like glass, usually to what the industry calls a No. 8 mirror finish. The metal is formed into shape, joined, ground flush at every seam and polished through progressively finer stages. Because a mirror shows every dent, ripple and scratch, this is one of the most demanding finishes in metal fabrication. This guide explains how it is done, what to specify, and where to see good examples.
The artworks mentioned in this guide are by the credited artists and were not made by Elite Fixtures. Links go to our appreciation articles and to the artists' own pages.
Why artists choose mirror stainless steel
A mirror surface makes a sculpture change with its surroundings. It takes on the colour of the sky, the movement of people, the light of the season. The object seems to dissolve into its setting while still holding a strong shape. Stainless steel is the practical way to get that effect outdoors, because unlike glass mirrors it is tough, and unlike polished carbon steel it does not rust.
Which grade: 304 or 316?
- 304 stainless steel is the common general-purpose grade. It works well indoors and in mild outdoor settings away from salt.
- 316 stainless steel adds molybdenum, which improves resistance to chlorides. It is the usual choice near the sea, near roads treated with de-icing salt, and around fountains and pools.
For outdoor sculpture in cities like Toronto, where winter road salt is everywhere, 316 is often worth the extra cost. The FUTUREFORMS sculpture Orbital in San Francisco, for example, uses 316 marine-grade stainless steel for its skin because of the city's damp, salty air.
How a mirror stainless steel sculpture is made
1. From model to parts
Most sculptures start from an artist's model: a 3D file, drawings, or a physical maquette. The fabricator divides the form into panels that can be cut from standard sheet sizes, decides where seams will fall, and designs the internal frame that will carry them. Seam placement matters more on a mirror piece than on any other finish, because seams are the hardest part to hide.
2. Forming
Flat faces, like the cubes of Arnaud Lapierre's Ring • Chain, are cut and folded. Curved and double-curved surfaces are rolled, pressed or shaped over forms and checked against templates from the 3D model. Thicker sheet or backing frames help keep large panels flat, since any waviness distorts the reflection.
3. Welding and grinding
Panels are joined, usually by TIG welding, then the weld bead is ground flush with the surrounding sheet. Heat from welding can pull thin sheet out of shape, so welding sequences are planned to spread the heat.

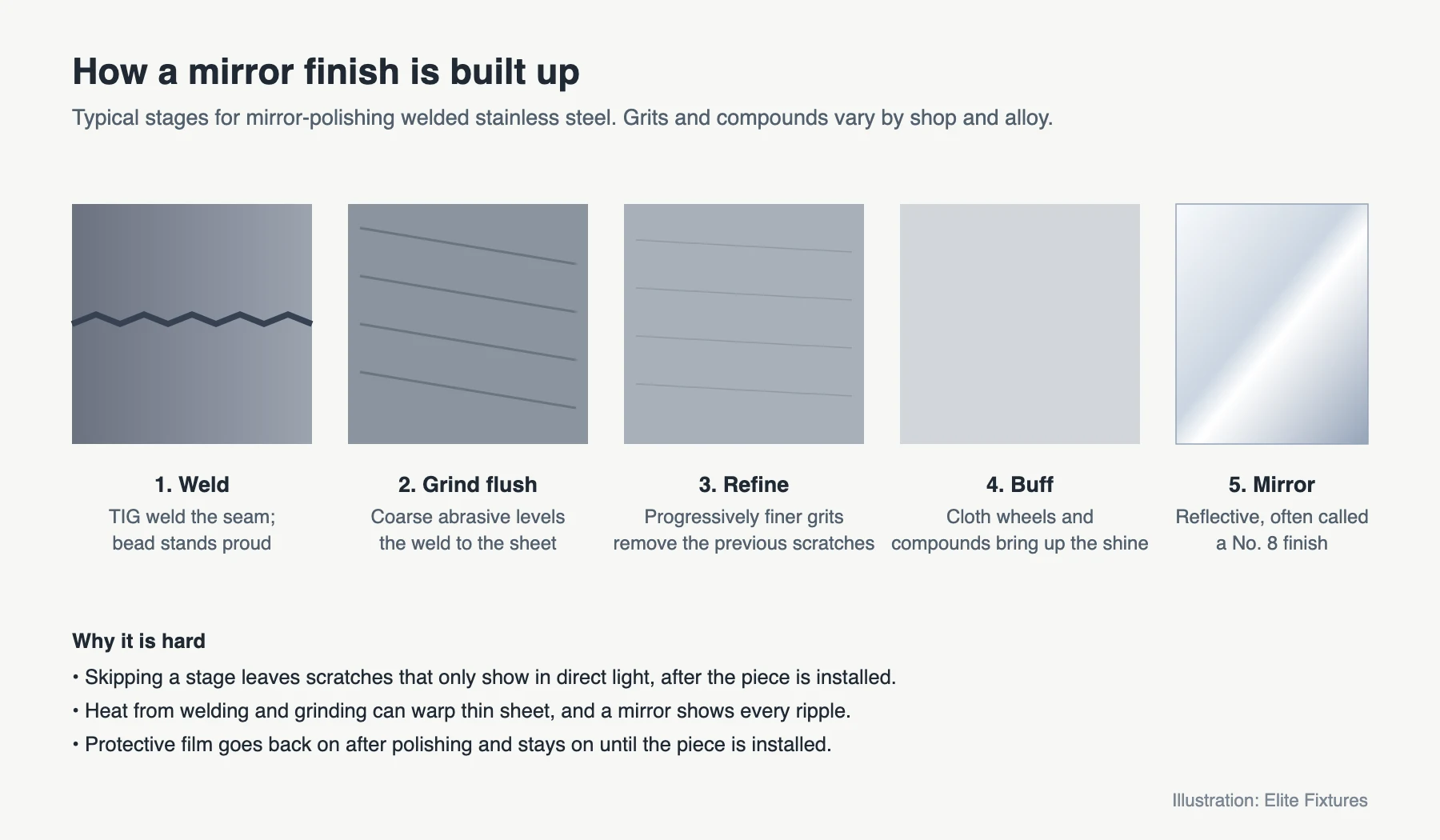

4. Polishing to a mirror
Polishing builds the finish in stages: coarse abrasives to level the seams, then progressively finer grits to remove the scratches from each step, then cloth buffing wheels with polishing compounds. The result is a reflective surface, commonly called a No. 8 mirror finish. Skip a stage and the leftover scratches appear under direct sunlight after installation.
5. Protection, trial assembly and shipping
Protective film goes back on as soon as polishing is done. Large sculptures are often trial-assembled in the factory to check alignment, then crated with padding so nothing touches the polished faces in transit.
6. Installation and final touch-up
On site, the pieces are lifted into place, fixed to the base and aligned. Any seams joined on site are ground and polished in place, and the film comes off only at the end.
Cleaning and maintenance
A mirror sculpture outdoors collects fingerprints, rain spots and city grime. Regular cleaning with water, a mild detergent and soft cloths keeps it bright; abrasive pads and chloride cleaners should be avoided. In salty environments, rinsing more often helps prevent tea staining, the light brown surface discolouration that can appear on stainless steel near the sea or roads.
Mirror stainless steel works to see
- Ring • Chain, Shanghai. Arnaud Lapierre's ring of stacked mirror cubes at Ruihong Tiandi, fabricated by UAP, where reflections repeat toward infinity inside. Read our article on Ring • Chain.
- Mirage, Toronto. Paul Raff's 57 octagonal mirror panels on the underside of an overpass in Underpass Park. It is currently in storage during bridge repairs. Read our article on Mirage at Underpass Park.
- Orbital, San Francisco. FUTUREFORMS' 33-foot coiled sculpture with a reflective, tessellated 316 stainless steel skin. Read our article on Orbital.
- Lodestar, Toronto. Lisa Hirmer's mirror-finished steel sculpture of stacked text on the Lassonde Art Trail. See our guide to the Lassonde Art Trail.
What to agree on before you commission one
- The finish standard. Look at finish samples in daylight and agree on what "mirror" means and how visible seams may be.
- The grade. Choose 316 for coastal, road-salt and water-feature sites.
- Seam layout. Agree with the artist where seams fall and whether they are hidden or part of the design.
- Structure and base. Have an engineer size the internal frame and the anchorage for wind and public contact.
- Cleaning plan. Decide who will clean the piece, how often, and with what.
How Elite Fixtures works on mirror stainless steel
Elite Fixtures fabricates stainless steel sculpture and public art in its own factory in Huizhou, Guangdong, from artists' models, 3D files and drawings. We work in 304 and 316 stainless steel, with TIG and MIG welding, ground and blended seams, and mirror, hairline, brushed, bead-blast and PVD colour finishes. Pieces are trial-assembled in the factory and photographed before crating, and we ship to Canada, the United States and worldwide, with our own installation crew for projects in the Greater Toronto Area. The video on this page shows our fabrication work. See our custom stainless steel fabrication service for more.
FAQ
What is a No. 8 mirror finish on stainless steel?
A No. 8 finish is the most reflective standard finish for stainless steel, polished until the surface reflects like a mirror. It is produced by grinding and polishing through progressively finer abrasives and then buffing with compounds until the earlier scratch lines disappear. It is the finish most often used for mirror stainless steel sculpture.
Is 304 or 316 stainless steel better for outdoor sculpture?
316 stainless steel is better for outdoor sculpture near the sea, roads treated with de-icing salt, or water features, because its added molybdenum resists chloride corrosion. 304 stainless steel is suitable for indoor work and mild outdoor settings. In cities with heavy winter road salt, such as Toronto, 316 is usually the safer choice.
How do you clean a mirror stainless steel sculpture?
Clean a mirror stainless steel sculpture with clean water, a mild non-chloride detergent and soft microfibre cloths, wiping in one direction and drying to avoid water spots. Avoid abrasive pads, steel wool and bleach-based cleaners, which scratch or stain the surface. In salty environments, rinse more often to prevent brown tea staining.
How long does a mirror stainless steel sculpture last outdoors?
A well-made mirror stainless steel sculpture in the right grade can last for decades outdoors, because stainless steel does not rust through the way carbon steel does. How good it looks over time depends on the grade chosen for the site, the quality of the welds and polishing, and regular cleaning to remove salt and grime.
How are mirror stainless steel sculptures made?
Mirror stainless steel sculptures are made by dividing the artist's form into panels, cutting and forming stainless sheet, welding the panels over an internal frame, grinding every seam flush, and polishing through progressively finer abrasives and buffing compounds to a mirror. The finished piece is protected with film, trial-assembled, shipped and installed.
About this article
Photographs of Ring • Chain are courtesy of the artist and UAP and are shown with permission; the Mirage photograph is from Wikimedia Commons under the licence in its caption; the diagram is our own. Elite Fixtures did not make any of the artworks mentioned. Elite Fixtures is a fabrication partner: we build work that artists and designers have already designed, and we don't create original artworks or make reproductions of existing ones. If you have your own concept for a mirror stainless steel piece, talk to our team about fabrication.
